1.3GB GIGAMO Magneto-Optical (MO) Solutions for Vintage HP
computers with HP-IB or MAC Interfaces
|
|
Questions? |
|

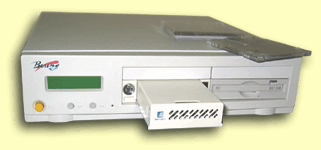

OptiPac-3 with Optional HP9144 Tape Backup Emulation
|
|
|
|
|
|
 |
|
Key Facts:
|
Interface(s) |
|
 |
|
HP-IB |
|
|
|
|
MAC (HP13037A-D Multi-Access Controller) |
|
|
|
|
|
| O/S Support |
|
|
|
HP-UX |
|
|
|
|
BASIC |
|
|
|
|
PASCAL |
|
|
|
|
RTE |
|
|
|
|
|
| HP Disk Equivalent(s) |
|
|
|
HP7906, 7907A/S, 7908/11/12/14, 7942A, 7946A |
|
|
|
|
|
| HP Tape Equivalent(s) |
|
|
|
HP9144, HP9145 and Built-in Cartridge Tape Drive(Emulation) |
|
|
|
|
|
| Extras |
|
|
|
128MB, 230MB, 540MB, 640MB MO Read/Write Compatibility |
|
|
|
|
LCD Controls and Disk Utilities |
|
|
|
|
Rackmountable |
Keep data safe and accessible with Bering’s OptiPac-3 MO disk drives.
Magneto-Optical Technology is rewritable, it’s convenient, it’s durable and
highly reliable, and it’s high capacity. MO has proven to be the best
removable storage technology for archiving data. The compact 3.5" MO media cartridges
can store up to 1.3GB of data and the low media price make it the best $/MB value for
keeping data safe. MO is resistant to environmental conditions and electromagnetic
interference. There is no danger of lost data from head crashes because nothing touches
the actual disks. Store, protect, secure, transport,
backup, and/or exchange graphic files, large databases, and
other important information.
New Optional Feature—The OptiPac-3 is now available with an option that
emulates the HP9144 tape drive. Use the OptiPac-3 to backup data as an image copy or
file-by-file using your HP computer’s 9144 and 9145 backup utilities. Model 8601LT
and 8601LX emulate the HP9144/HP9145 and the 8611LX emulates HP
7908/7911/7912/7914/7942A/7946A hard disk systems with tape cartridge.
The OptiPac-3 MO drives make the best choice for HP users needing a
removable, near-line and long archival storage solution. They can replace vintage HP7907,
HP7906, HP79xx, and HP9153 storage systems. The OptiPac-3 MO models are available as a
single or dual MO drive(s) and combination MO plus a hard disk. Use the hard disk as the
system disk and the MO drive for copying data. Bering supports them on HP 9000 and HP 1000
systems with HP-IB or MAC interfaces.
| Models |
Description |
Interface |
Protocol |
|
REMINDER
Don't forget to order a HP-IB cable, rackmount kit, additional disk media cartridge(s)
or cleaning kit(s) from the following Accessories list.
It is recommended to clean the lens (head) every 3 months and the disk media
every 300 hours of operation.
| Specifications
1 |
Magneto-Optical |
Fixed Hard Disk |
Removable Hard Disk |
| Performance: |
| Formatted Capacity (MB) 2 |
1240(Max) |
1240 |
24 x 1240 MB/Ring |
| Minimum Seek Time (ms) |
|
3.5 |
3.5 |
| Average Seek Time (ms) |
23 |
10.5 |
10 |
| Rotational Speed (RPM) |
3214 |
4500 |
7200 |
| Maximum HP-IB Speed (MB/sec) |
1.0 |
| Drive MTBF (POH) |
120,000 |
250,000 |
| Power Requirements: |
| Line voltage (volts) |
90-260 |
| Line Frequency (Hz) |
47-440 |
| Maximum Current (Amp) |
1.1 |
| Miscellaneous: |
| Rackmount |
HP Standard Rack or EIA/RETMA 19"
Standard |
| Unit Dimensions |
3"x12.8"x14" (76mm x 325mm
x 355mm) |
| Net Weight |
Up to 23 lbs. (11kg) |
| 1 |
|
All information is subject to change without notice. |
| 2 |
|
Minimum formatted capacity at 1024 bytes per sector. Capacity is limited
to multiple 10MB volumes on HP7906 emulation with higher capacity volumes when emulating
other disk drives. |
| |
|
|
|
